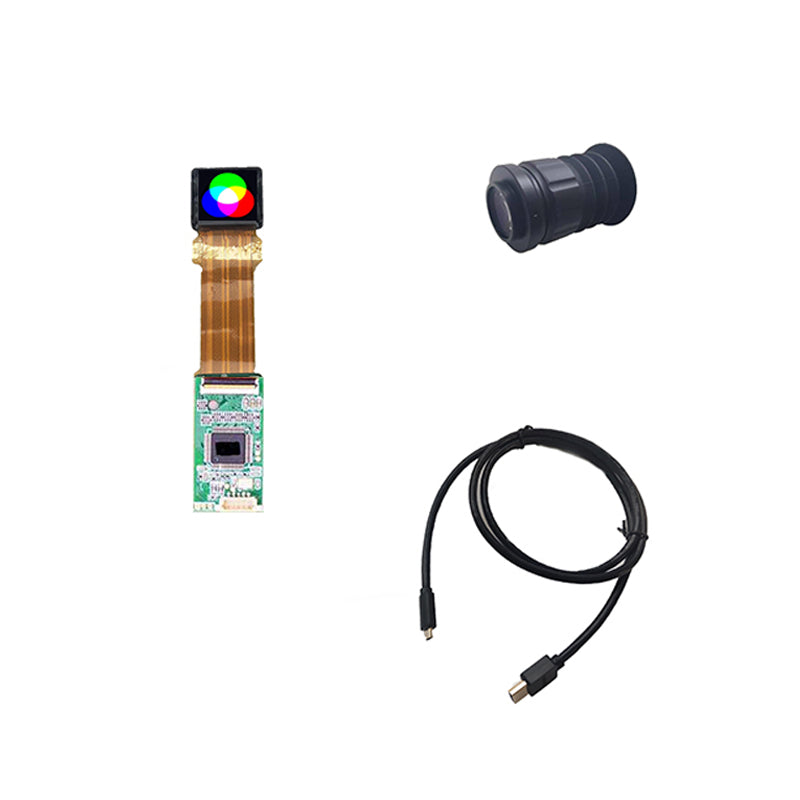

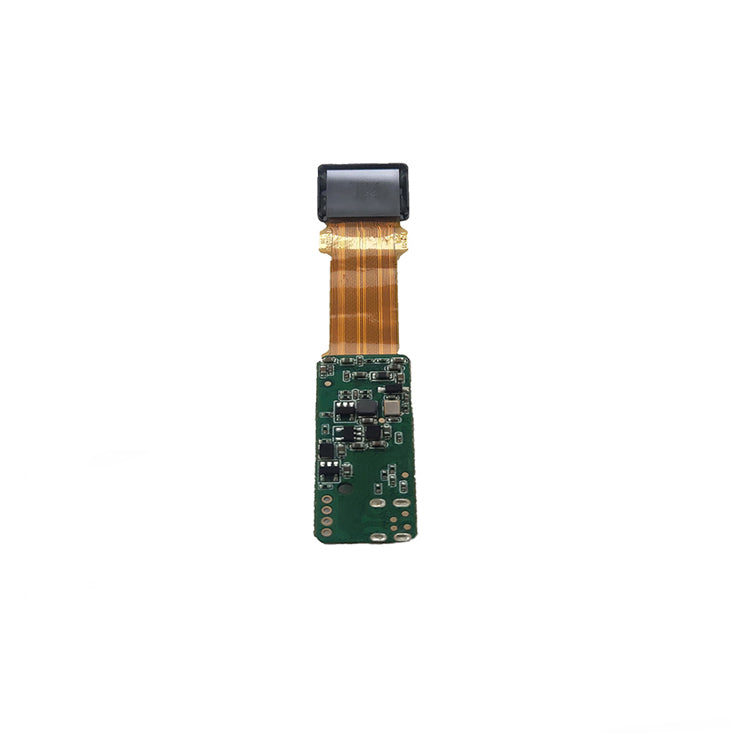

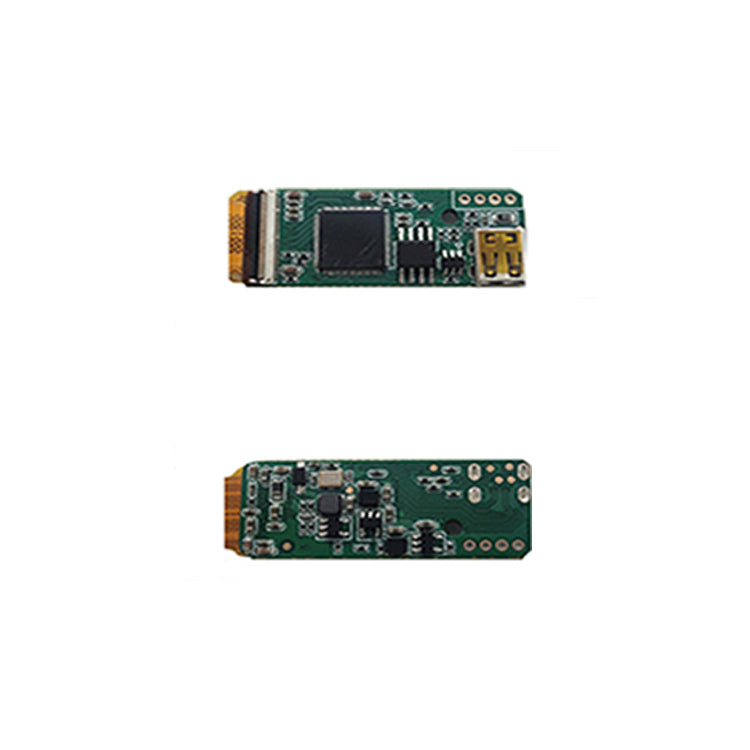

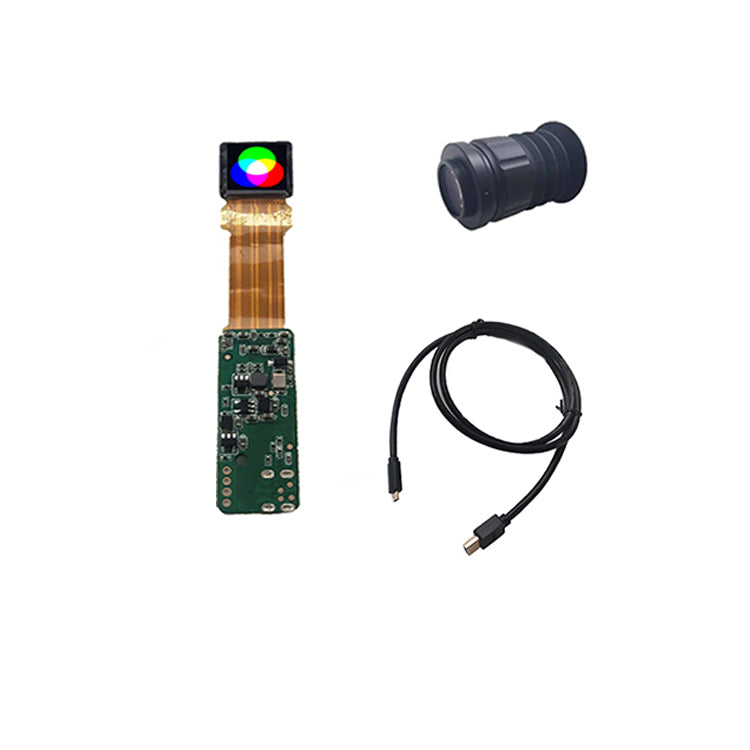

0.39 inch micro OLED display HD 1024(RGB)X768 with controller board For AR/VR Smart devices
0.39 inch micro OLED display HD 1024(RGB)X768 with controller board For AR/VR Smart devices
0.39 inch micro OLED display HD 1024(RGB)X768 with controller board For AR/VR Smart devices
0.39 inch micro OLED display HD 1024(RGB)X768 with controller board For AR/VR Smart devices
0.39 inch micro OLED display HD 1024(RGB)X768 with controller board For AR/VR Smart devices
0.39 inch micro OLED display HD 1024(RGB)X768 with controller board For AR/VR Smart devices
0.39 inch micro OLED display HD 1024(RGB)X768 with controller board For AR/VR Smart devices
0.39 inch micro OLED display HD 1024(RGB)X768 with controller board For AR/VR Smart devices

0.39 inch micro OLED display HD 1024(RGB)X768 with controller board For AR/VR Smart devices

Shipping calculated at checkout.

OL39CF is a 1.0 cm (0.39inch) diagonal, 1024(RGB) × 768 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution. .
(Potential applications: Head mounted displays, View finders, Small monitors etc.)

 Features / Function
◆ Small size high resolution type 0.39 inch display module
◆ Effective Dots: 1024 x RGB × 768 = 2.36 M dots
◆ Actual Dots including Orbit function: Total dots 1044 x RGB x 788 = 2.47 M dots
◆ Ultra high contrast
◆ Wide color gamut
◆ Fast response speed
◆ Thin and light in weight
◆ Power consumption Saving (PS) mode
◆ Scan

PS: Please kindly contact me for full data sheet of the display



Display Type:  oled display
Display Mode:  Passive Matrix
Model Number: OL39CF
Diagonal Screen size: 0.39 nch
Interface:

parallel RGB 24-bit/YCbCr 16-bit input
Number of Pixels:

1024 (RGB) × 768
Panel Size:

15.6 x 13.6 x 0.2 (mm)
Active Area:

8.143x 6.146 (mm)

Weight:

TBD

Operating Temperature:

 -10~70°
