0.39" OLED Microdisplay 800(RGB)X600 with HDMI Driver board for Night Vision Goggles

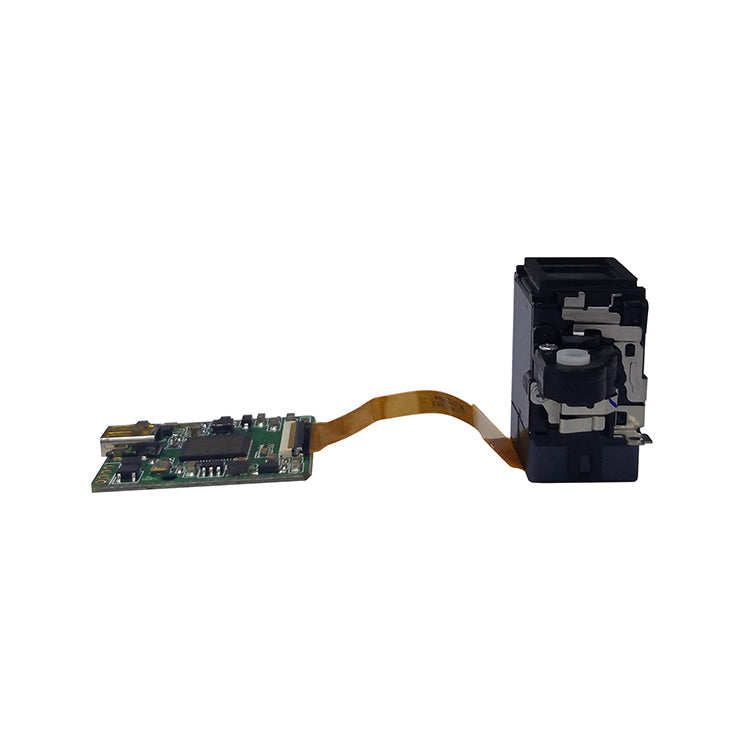

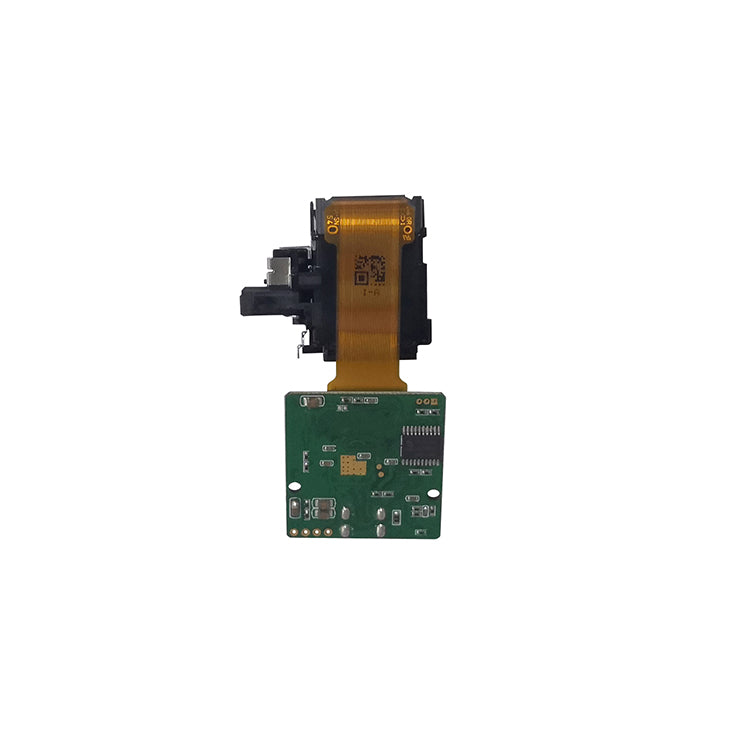

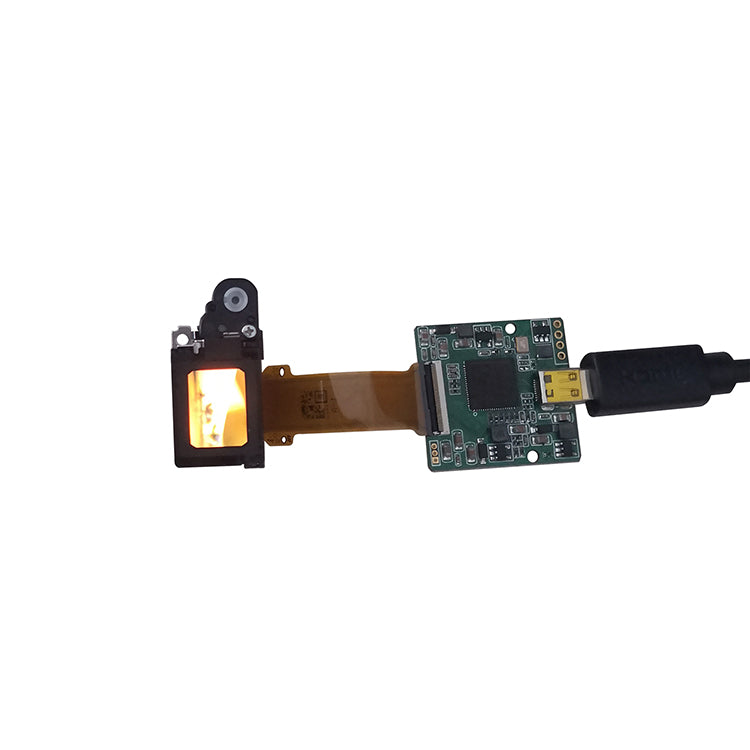

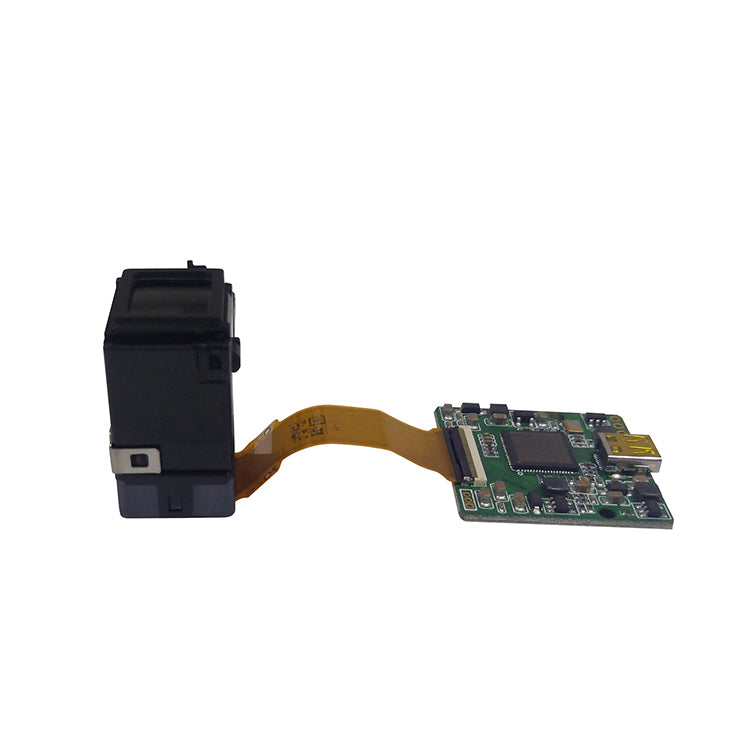

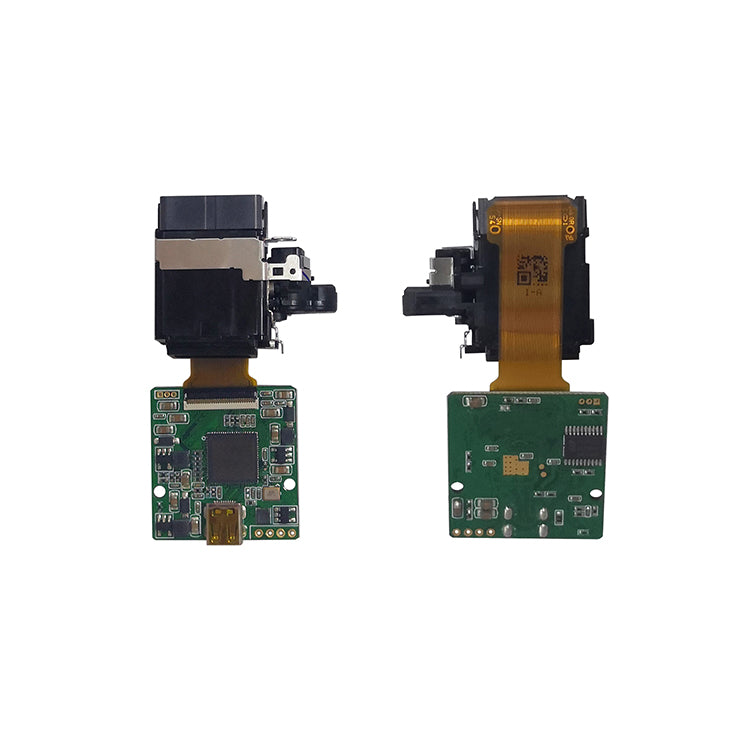

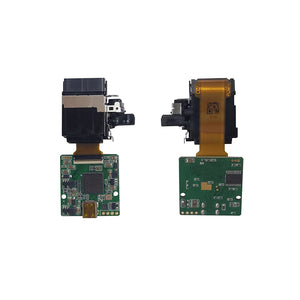

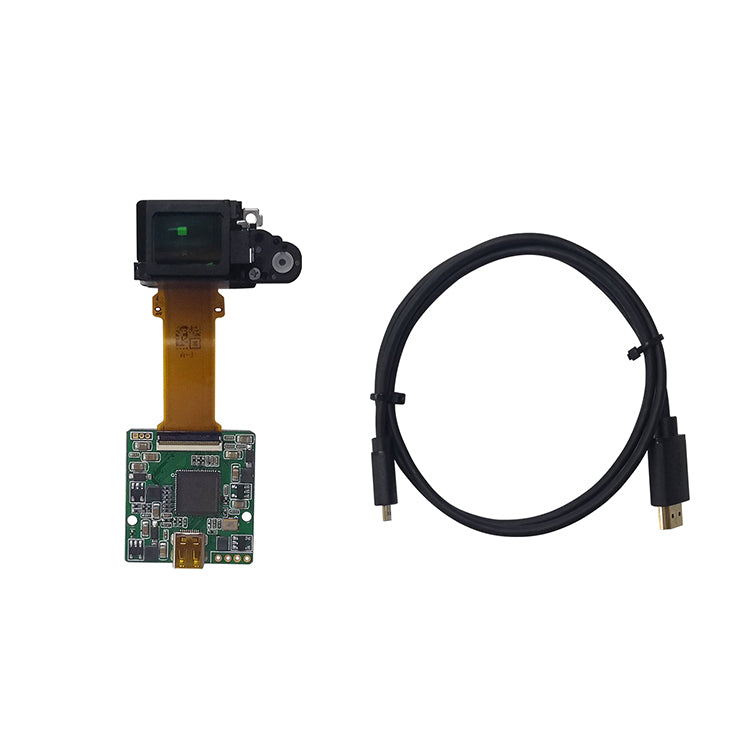

The Microdisplay Kit is made of 0.39 " 800X600 OLED Microdisplay+HDMI Driver Board+Prism, the 0.39” display is with low power consumption, small size, wide operating temperature range, bright and true colors, and high contrast.It is very ideal for the application of portable products, such as Electron microscope, telescope, portable digital night vision device, thermal imager, video glasses (head-mounted display), helmet display, etc. The kit includes 0.39” OLED microdisplay,resin optics (for image magnification), HDMI signal driver circuit board, HDMI connection cable, the power supply is directly taken from HDMI at 5V, and it can be displayed directly by connecting to the HDMI output device, which has a very nice cost performance.
Features
- Small-size, high-definition-type 0.39 inch display dots 800 (RGB) × 600
- High contrast
- Wide color reproduction range
- High-speed response
- Thin type and light weight
- Power-saving function
- Up/down and/or right/left inverse display function
- Orbit supported
Specification:
- Display Type: oled display
- Diagonal Screen size: 0.39 inch
- Number of Pixels: 800 (RGB) × 600
- Drive board Size （L×W×H）: 28.5×27×5.5mm
- Max Luminance: 500 cd/m2
- Contrast ratio :100000:1
- Operating Temperature: -10~70°
- Operating Temperature: -10~70°
- Supply voltage: DC 3.5V-5.0V
- Default Parts Packaged:Display+HDMI Board+Prism
Applications:
- AR Glasses
- VR Headsets
- View finders
- head mounted displays
- very small monitors,etc.
