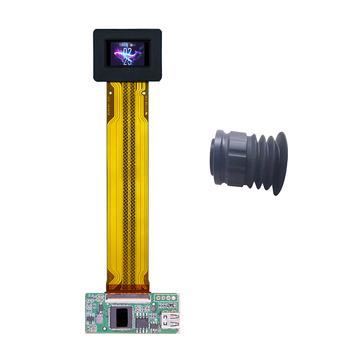

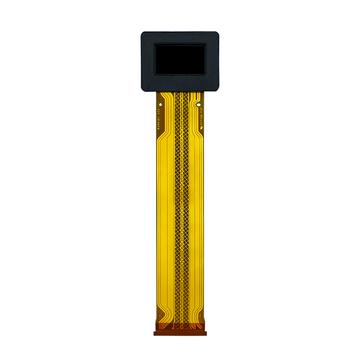

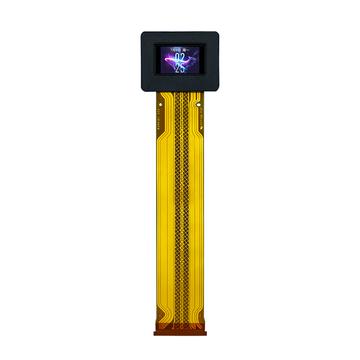

0.71inch Microdisplay OLED 1080*1920 Full HD HDMI Driver Board AR VR AMOLED Screen
The OL71AF is a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module using single crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.
(Applications: View finders, head mounted displays, very small monitors etc.)
Features
◆ Small size high definition type 0.70 display dots: 1920 (RGB)×1080 = 6.22 M dots
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported
PS: Please kindly contact us for full data sheet of display
Resolution
|
1920x1080dots
|
Display type
|
AMOLED
|
Active area
|
0.71 inch
|
PPI
|
3155
|
Interface type
|
LVDS
|
Connector
|
81pin
|
Operating temperature
|
0~70C
|
Storage temperature
|
-20~80C
|
