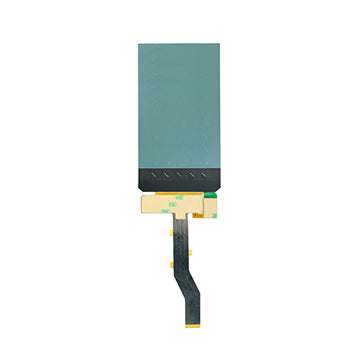

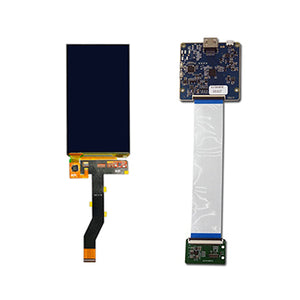

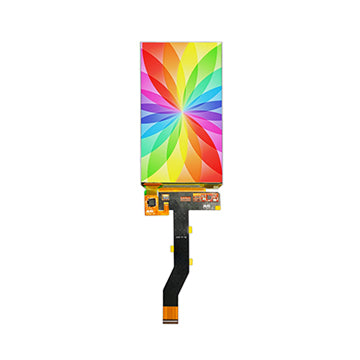

AUO 5 inch amoled color 720x1280 display for VR headset and mobile phone application
Mobile Phone Lcd Display Touch Screen 5 inch 720P 720X1280 Resolution
|
Module Size |
4.97 inch |
Dox Matrix |
720x1280 pixel |
|
Display Color |
color |
Pixel Configuration |
Real R.G.B |
|
Outline Dimension |
65.92 (H) × 118.64(V) × 1.00(T) |
Active Area(HxV mm) |
61.92 (H)×110.08(V) |
|
Driving Method |
DC |
Interface |
MIPI DSI |
|
Multi-Finger Touch |
10 |
Brightness |
80cd/m2 |
|
IC Driver |
RM69052 |
Supply Current/Voltage |
180mA,2.8V |
|
Viewing Angle |
Free |
Pixel Pitch |
0.43x0.43 (mm) |
|
Operation Temperatue |
-40~+60℃ |
Storage Temperatue |
-40~+70℃ |
