Micro Display 0.71 Inch 1920x1080 High Resolution OLED Dual Eyes Board AR/VR Headset Screen Near Sight Application

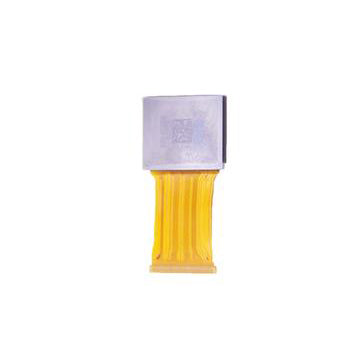

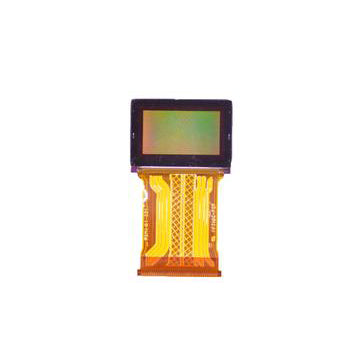

The HGECX335SN is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution. .
(Potential applications: Head mounted displays, View finders, Small monitors etc.)
Features
◆ Small size and high resolution type 0.70 display
◆ Effective dots: 1920 (RGB)×1080 = 6.22 M dots
◆ Ultra high contrast
◆ Wide color gamut
◆ Fast response speed
◆ Thin and light in weight
◆ Power saving (PS) function
◆ Scan direction selection, up or down and right or left.
◆ Orbit supported
PS: Please kindly contact us for full data sheet of the display
|
Panel Size |
0.71" |
Panel Type |
Si-Base AMOLED , OLED |
|
Resolution |
1920(RGB)×1080, FHD, 3078PPI |
Pixel Format |
RGB Delta |
|
Display Area |
15.8(W)×8.99(H) mm |
Outline Dim. |
24.24(W)×15.62(H) ×1.54(D) mm |
|
Brightness |
3000 cd/m² (Typ.) |
Contrast Ratio |
10000:1 (Min.) (TM) |
|
Viewing Angle |
/ |
Display Mode |
/ |
|
Best View on |
Symmetry |
Response Time |
/ |
|
Display Colors |
16.7M 97% sRGB |
Lamp Type |
self |
|
Frequency |
60Hz |
Touch Screen |
Without |
|
Panel Weight |
/ |
Application |
VR AR |
|
Signal Interface |
LVDS , 81 pins FPC |
||
|
Input Voltage |
1.8/10V (Typ.)(VDD1/VDD2) |
||
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
||
