OLED 0.39" Microdisplay 800(RGB)X600 with CVBS Board and Prism For Night Vision

Description

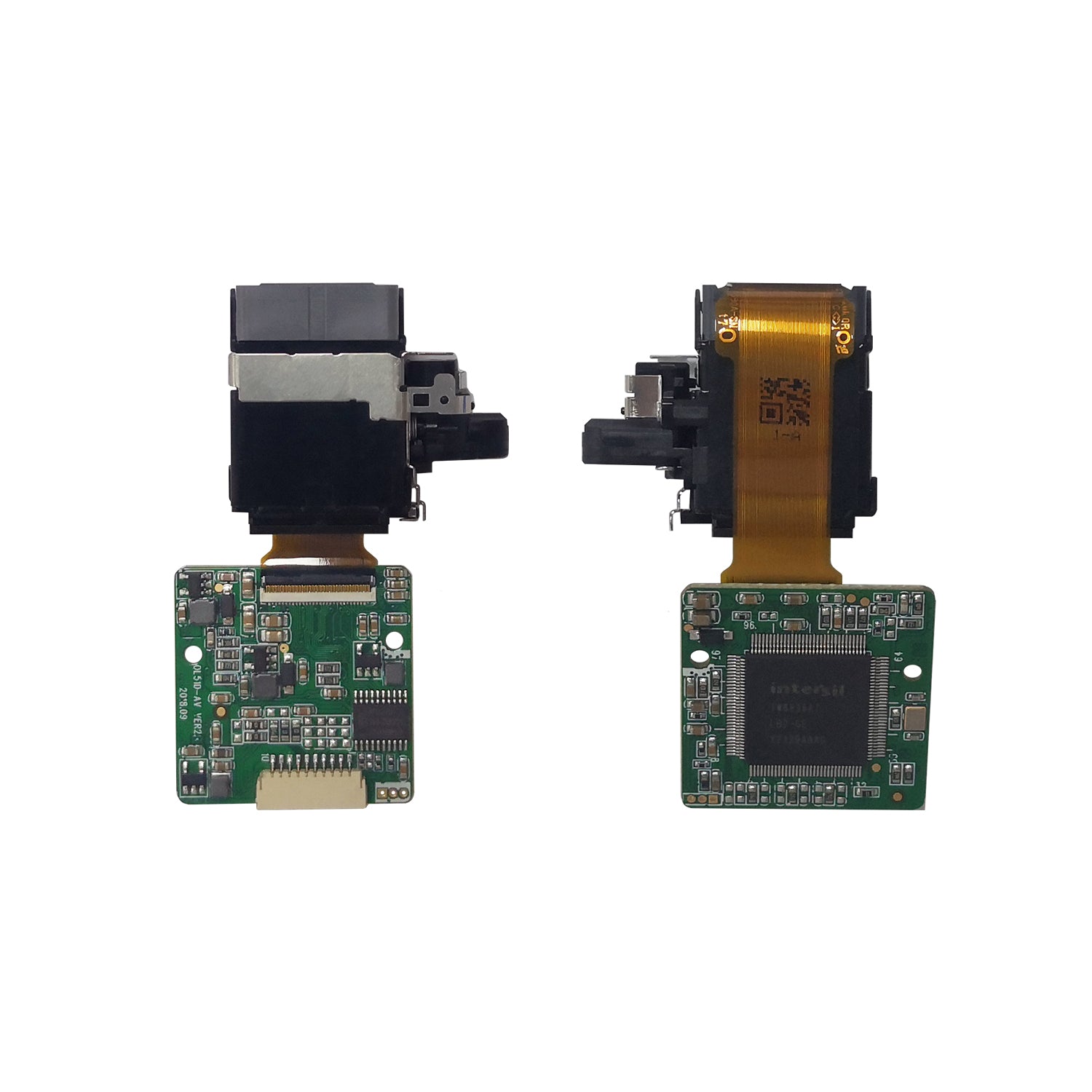

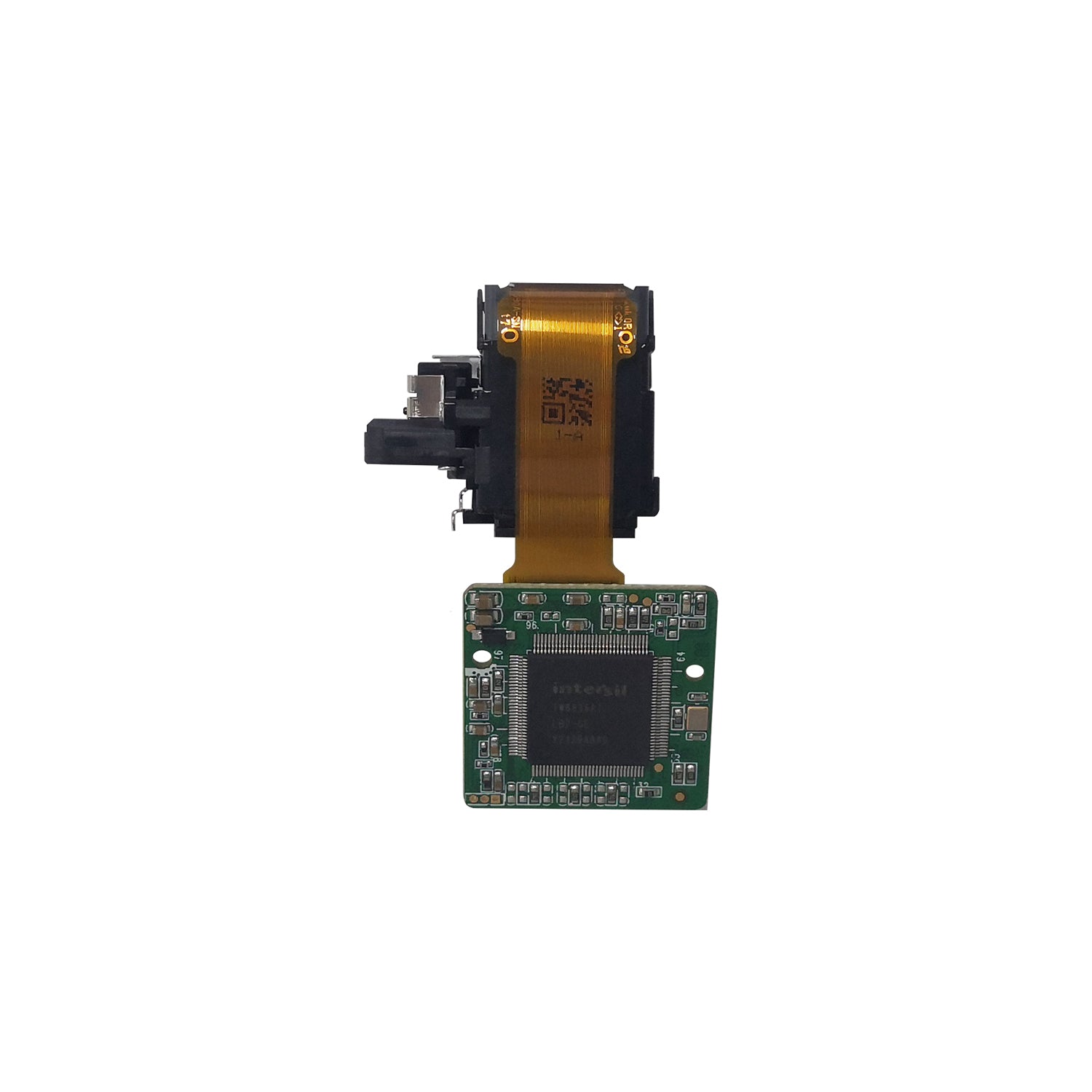

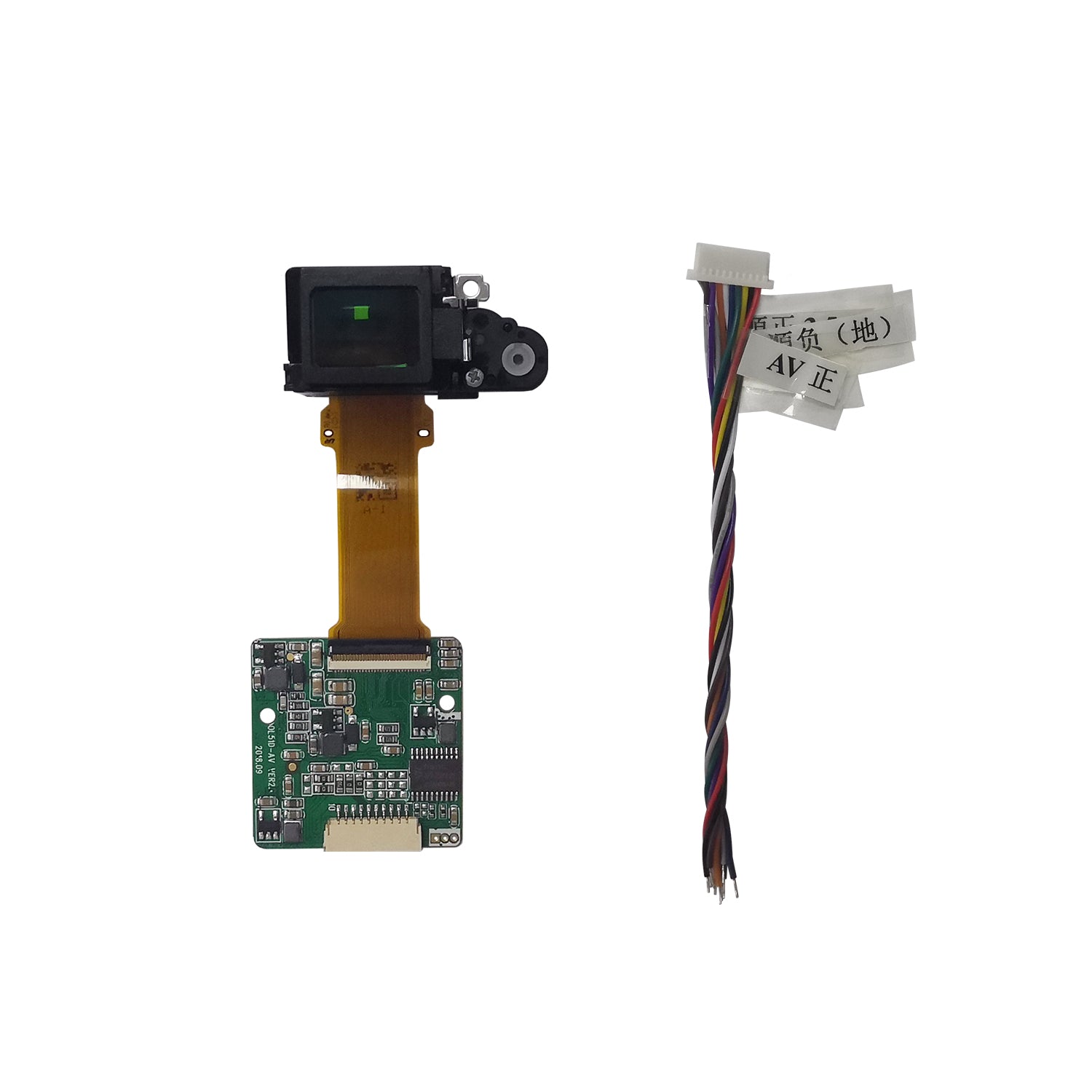

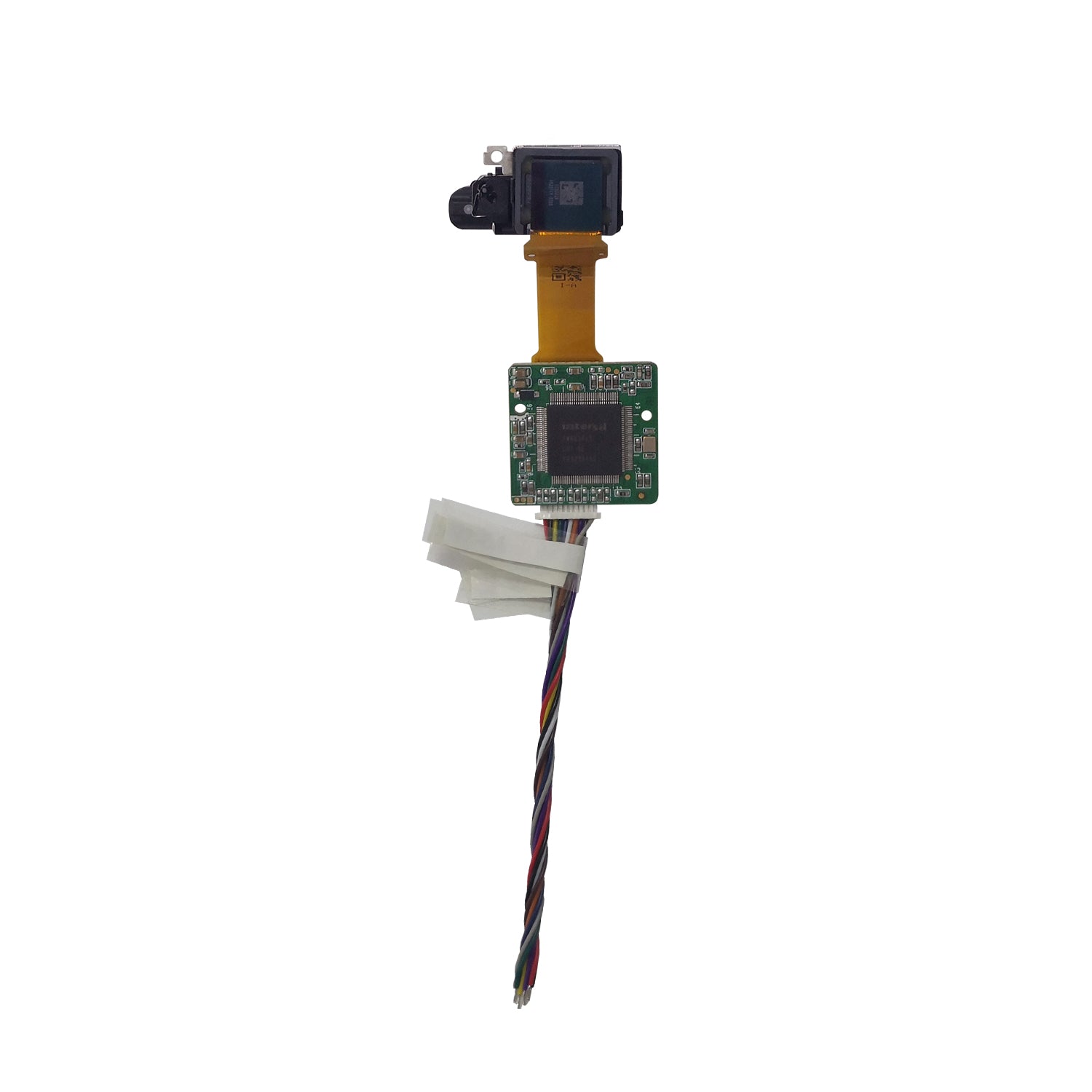

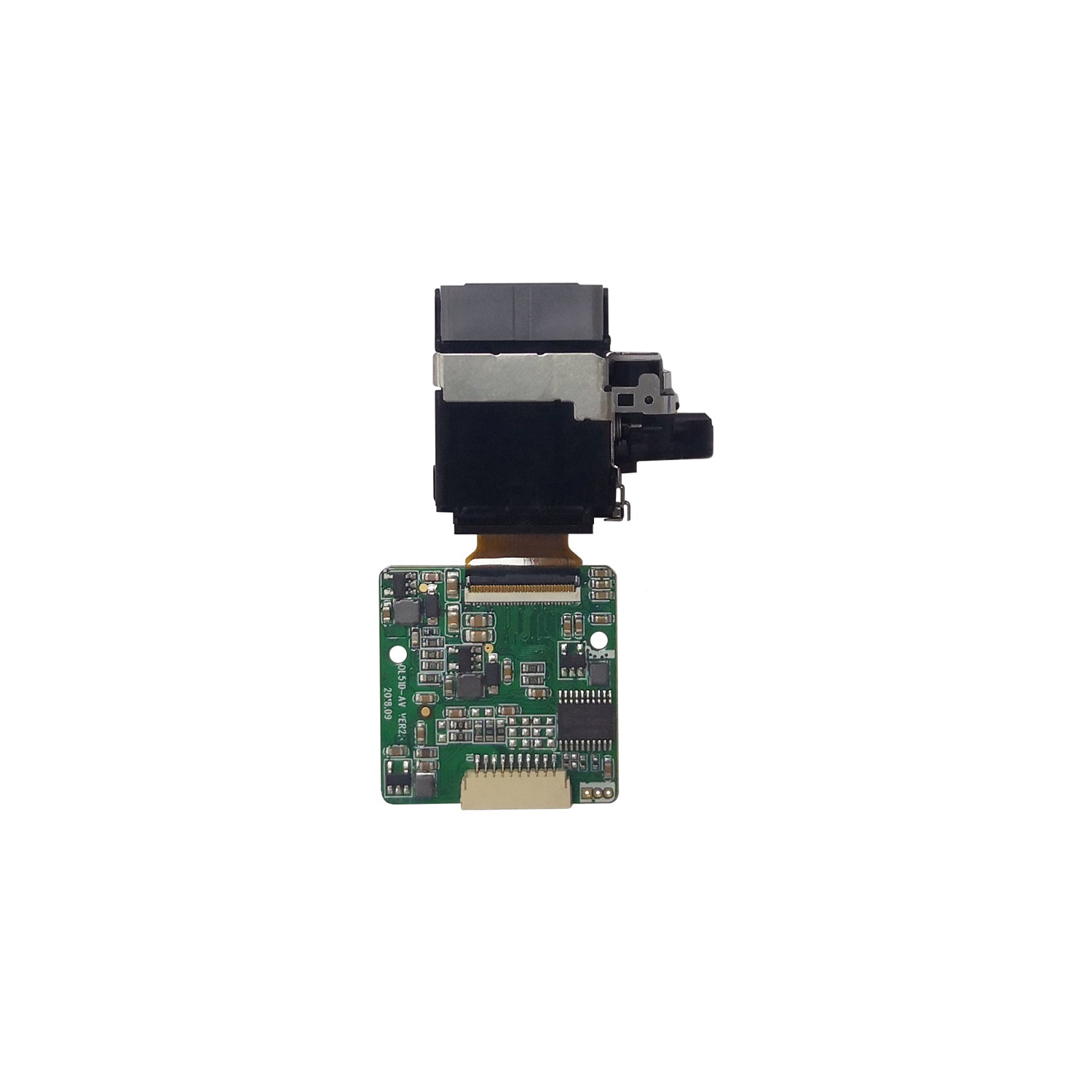

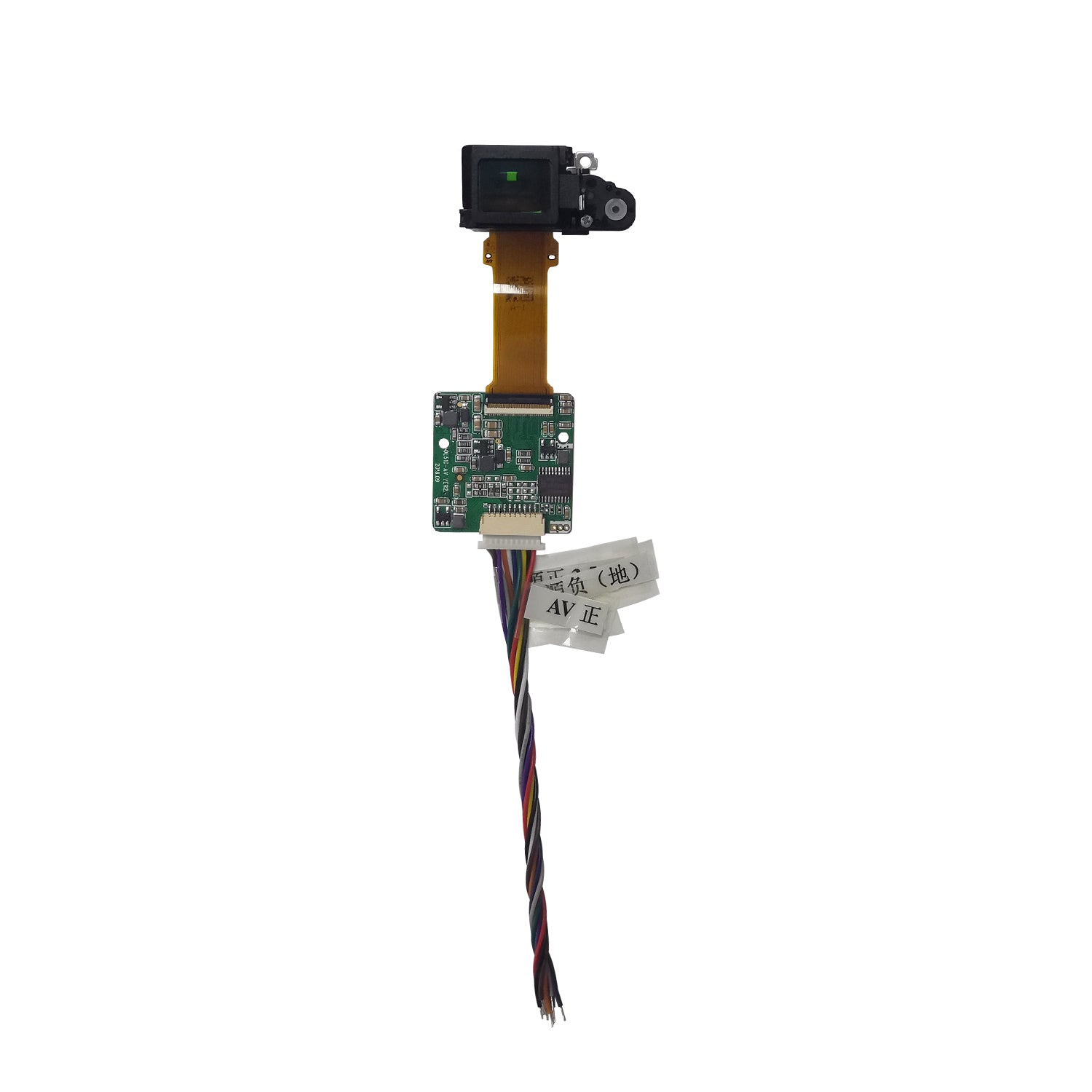

This solution is with 0.39 inch high resolution 800X600 OLED micro-display, the 0.39” display is with low power consumption, small size, wide operating temperature range, bright and true colors, and high contrast.It is very ideal for the application of portable products, such as Electron microscope, telescope, portable digital night vision device, thermal imager, video glasses (head-mounted display), helmet display, etc. The kit includes 0.39” OLED microdisplay,resin optics (for image magnification), CVBS signal driver circuit board, CVBS connection cable,, which has a very nice cost performance. For display parameters, please refer to the related document.

Features

• Small-size, high-definition-type 0.39 inch display dots 800 (RGB) × 600
• High contrast
• Wide color reproduction range
• High-speed response
• Thin type and light weight
• Power-saving function
• Up/down and/or right/left inverse display function
• Orbit supported

Specification:

• Display Type: oled display
• Diagonal Screen size: 0.39 inch
• Number of Pixels: 800 (RGB) × 600
• Drive board Size （L×W×H）: 28.5×27×5.5mm
• Max Luminance: 500 cd/m2
• Contrast ratio :100000:1
• Operating Temperature: -10~70°
• Operating Temperature: -10~70°
• Supply voltage: DC 3.5V-5.0V
• Default Parts Packaged:Display+CVBS Board+Prism

Applications:

• AR Glasses
• VR Headsets
• View finders
• head mounted displays
• very small monitors,etc.
